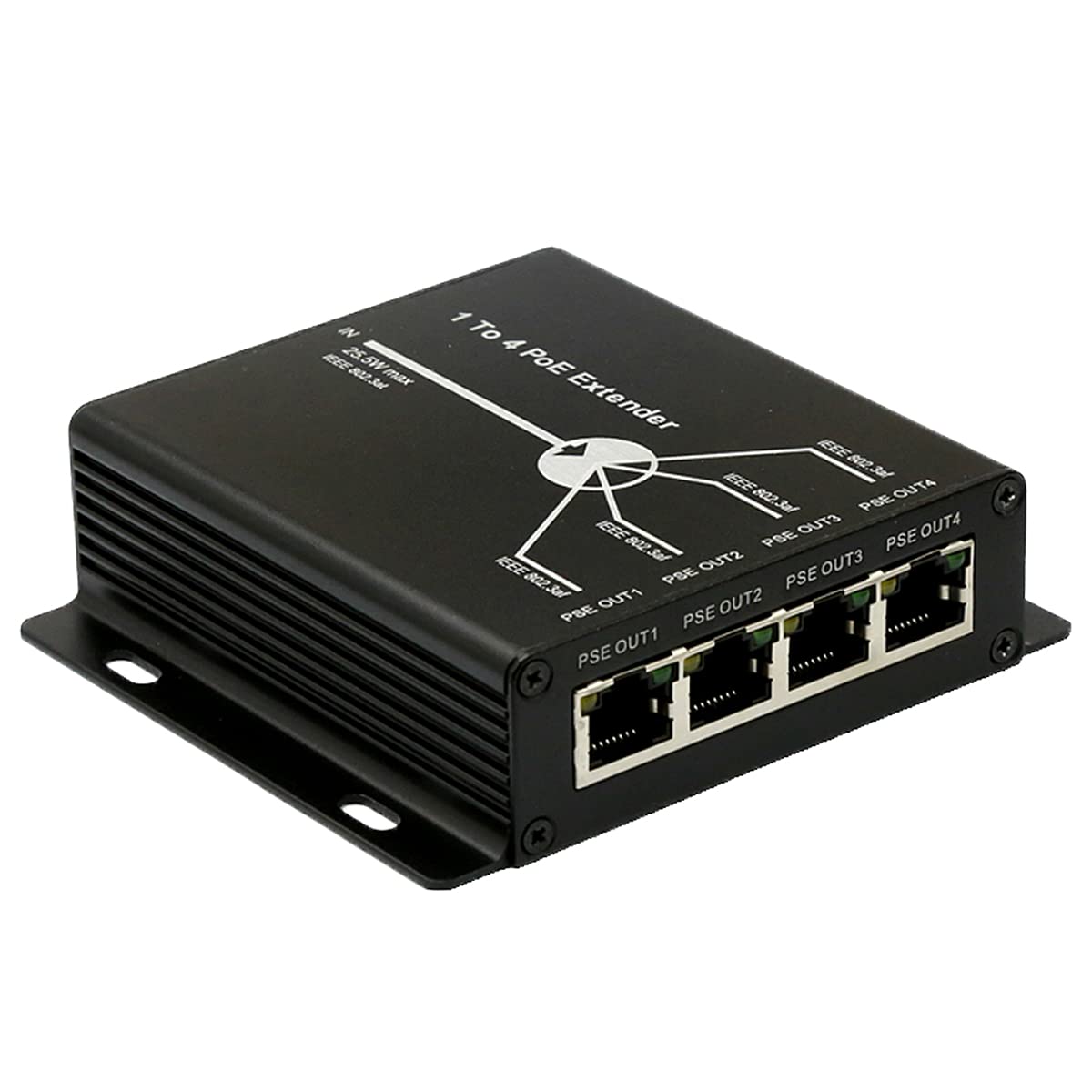

4 Port PoE Extender for IP Camera Ethernet Repeater W145514
Sale price
$33.90
Regular price $106.72
Skip to product information
Complies with IEEE 802.3af Power over Ethernet. Support 10/100M. Extend the range of PoE by another 120 meters.
Automatically detect and protect PoE devices from damage caused by incorrect installation.
Plug and play, no configuration required. Cost-effective installation of PoE extenders-no local power supply and other required configurations are required. Power is supplied via PoE input.
The 4-port PoE extender can forward Ethernet and PoE. Power supply for 4 terminal devices through Cat5, Cat5e, Cat6, Cat6e, UTP cable (less than 120m) UTP cable.
Using high-quality transmission lines, the transmission distance can reach 100~120m. Using low-quality cables, the transmission may not reach 80 meters. If the power consumption of the front-end equipment is too large, it may be that its working voltage is not enough. Excessive overload will result in low voltage and may not work.
4 Port PoE Extender for IP Camera Ethernet Repeater W145514
Sale price
$33.90
Regular price $106.72
Shipping calculated at checkout.
Complies with IEEE 802.3af Power over Ethernet. Support 10/100M. Extend the range of PoE by another 120 meters.
Automatically detect and protect PoE devices from damage caused by incorrect installation.
Plug and play, no configuration required. Cost-effective installation of PoE extenders-no local power supply and other required configurations are required. Power is supplied via PoE input.
The 4-port PoE extender can forward Ethernet and PoE. Power supply for 4 terminal devices through Cat5, Cat5e, Cat6, Cat6e, UTP cable (less than 120m) UTP cable.
Using high-quality transmission lines, the transmission distance can reach 100~120m. Using low-quality cables, the transmission may not reach 80 meters. If the power consumption of the front-end equipment is too large, it may be that its working voltage is not enough. Excessive overload will result in low voltage and may not work.
Product Name
4-Ports 10/10OMbps PoE Extender
Port Description
PoE input: 1RJ45 Port; PoE output: 2 RJ45 Port
Network Medium
Cat5 or better UTP cables (less than 120m)
Repeater Mode
Store and forward
MAC Address Table
2K
Packet Buffer Memory
48 Byte
Switching Capacity
40OMbps
PoE Standard
IEEE 802.3af/at
PoE Port Power
Input: 30Watts Max; Output: 15Watts Max
Power Supply Type
1/2+,3/6-,Mode A.End-Span
Network Protocol
IEEE 802.3i-10BASE-T
IEEE 802.3u: 10OBASE-TX
IEEE 802.3x-Flow Control
IEEE 802.3af-Power over Ethernet
Working Environment
0℃ ~ 40°C,10%~90%,No Condensation
